Innovative max power point tracking (MPPT) technology, tracking efficiency >99%
Automatic recognition of system voltage, 12V and 24V
Full digital technology, high charge & discharge conversion efficiency up to 96%
Motion detection for adapting dimming levels based on pedestrian needs
Precision constant current control supports from 50mA up to 100mA
External temperature sensor
5 Step dimming can be programmed from 0% to 100% levels
IP67, Strong and durable aluminium case

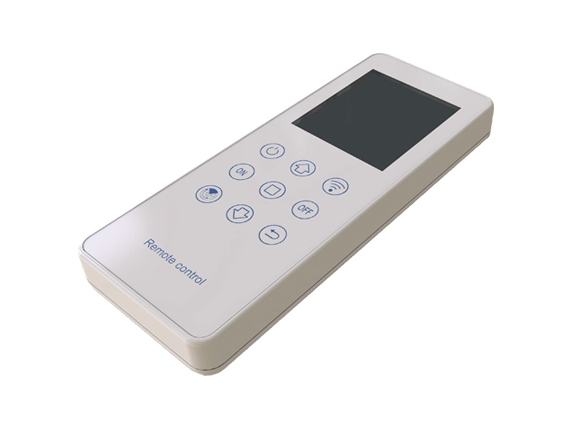

Remote control operation
Full automatic electronic protection
Low voltage disconnect (LVD) and reconnect (LVR) settings in order to keep battery life healthy
Remote solar charge controller for Solar Integrated Bollards and Vertical Solar PV poles (A92691)
Remote solar charge controller for Solar Integrated Post Top luminaire
(A92291)
Dimming options
- STD: 2 Step dimming with motion sensor override (3 hours: 60% without movement, 100% for 1 minute when the motion sensor activated,
After 3 hours: 30% without movement, 60% for 1 minute when the motion sensor activated) - ND: Dusk to Dawn
- CT: Custom (5 Step dimming, Custom hours, Custom dimming levels*)
WARNING: This device helps the client to see and change the control settings remotely. But before changing any settings, please consult the factory for details. If not handled properly, the system configuration might not function as planned.
GPRS Module (A92491)
The GPRS Module includes Intelligent Control System free of charge.
Intelligent Control System
- Software can be used from https://iot.xmnengjia.com/
- Work with solar lighting charge controllers with Infrared interface
- Switch on or off the load remotely
- Read the real-time information of battery/load/PV panel
- Program and read the specs of the solar controller remotely
- With GPRS telecom station positioning function
- Support remote firmware upgrade
SIM card
- Needs to be provided by the customer with an active internet service
- Needs to have one of the frequency bands listed below:
*LTE-FDD: B1, B3, B5, B8
*LTE-TDD: B34, B38, B39, B40, B41
Standard / Custom dimming type options
